POS Set-up

A complete walkthrough for merchants, installers, and users — from POS setup and card activation to funding, payments, lost-card recovery, and merchant withdrawals.

INSTALLER & MERCHANT SETUP GUIDE

Step 1 — Power On & Prepare

Power On & Prepare the Terminal

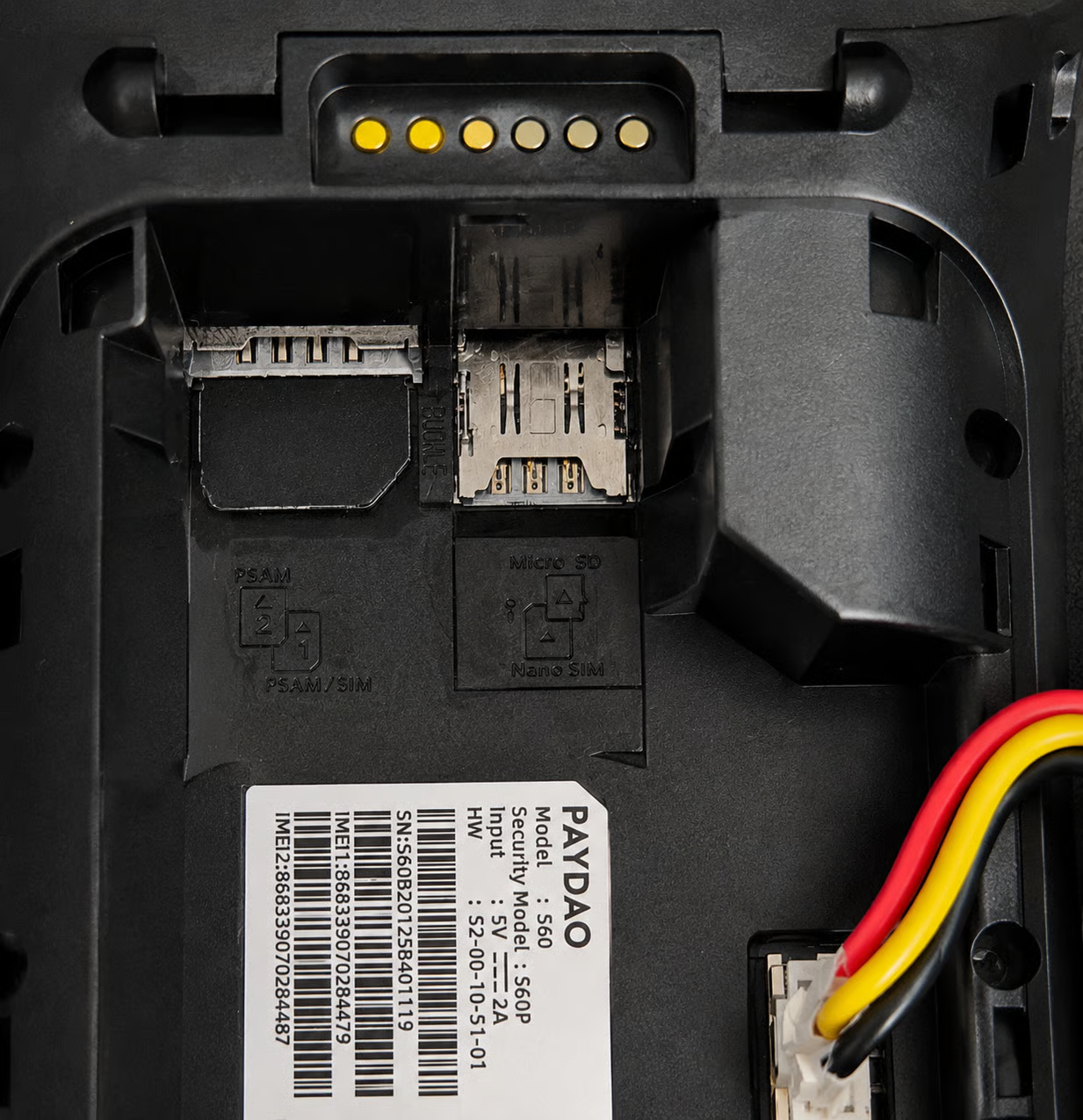

• Open the POS back cover and insert the Authorization Card into the PSAM/SIM slot
• Insert a SIM card (skip this step if you plan to use WiFi)
• Press the power button on the right side to turn the device on

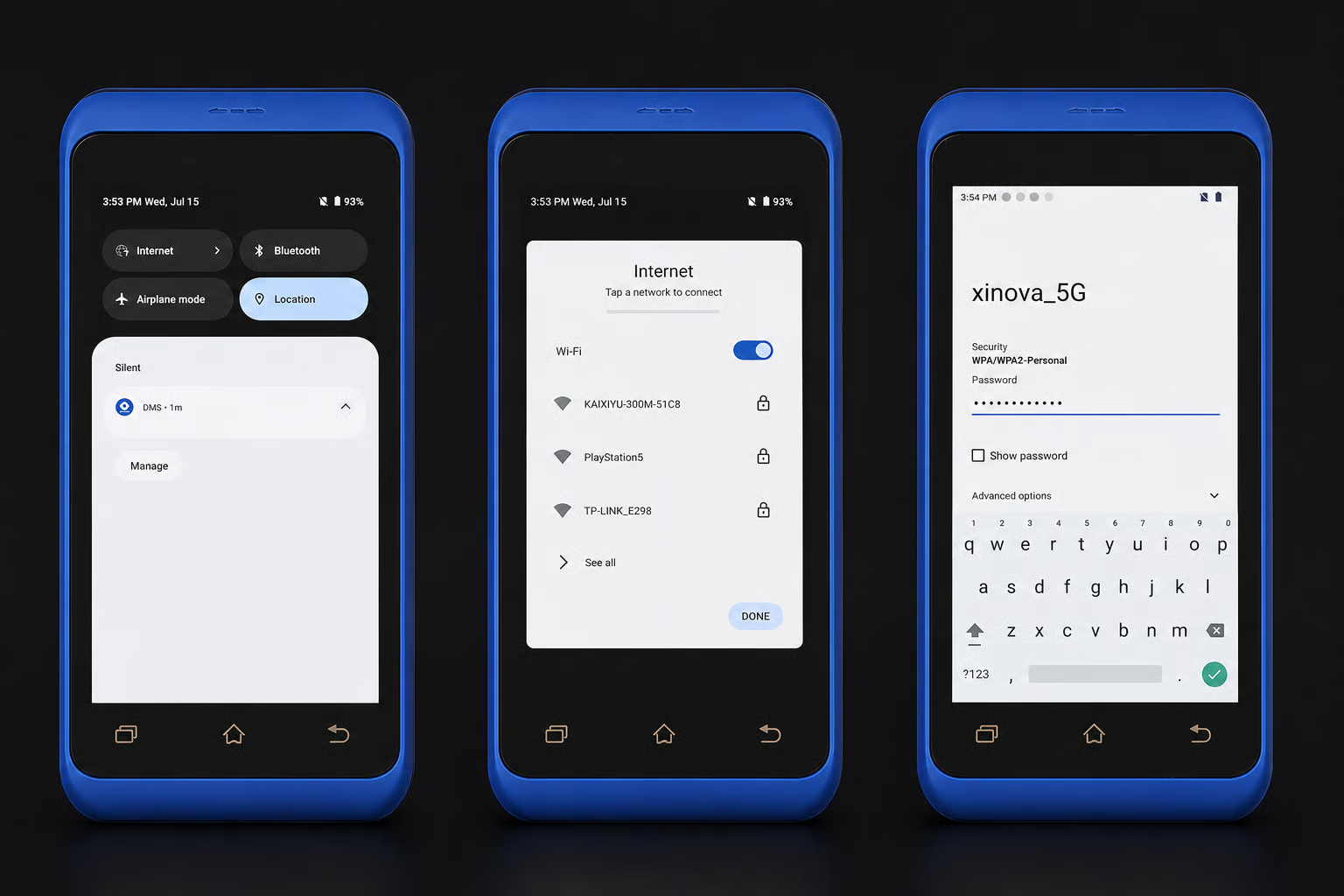

• Using WiFi? Go to Settings and add your network

Step 2 — Configure Addresses

Set up Withdraw / Reward Addresses

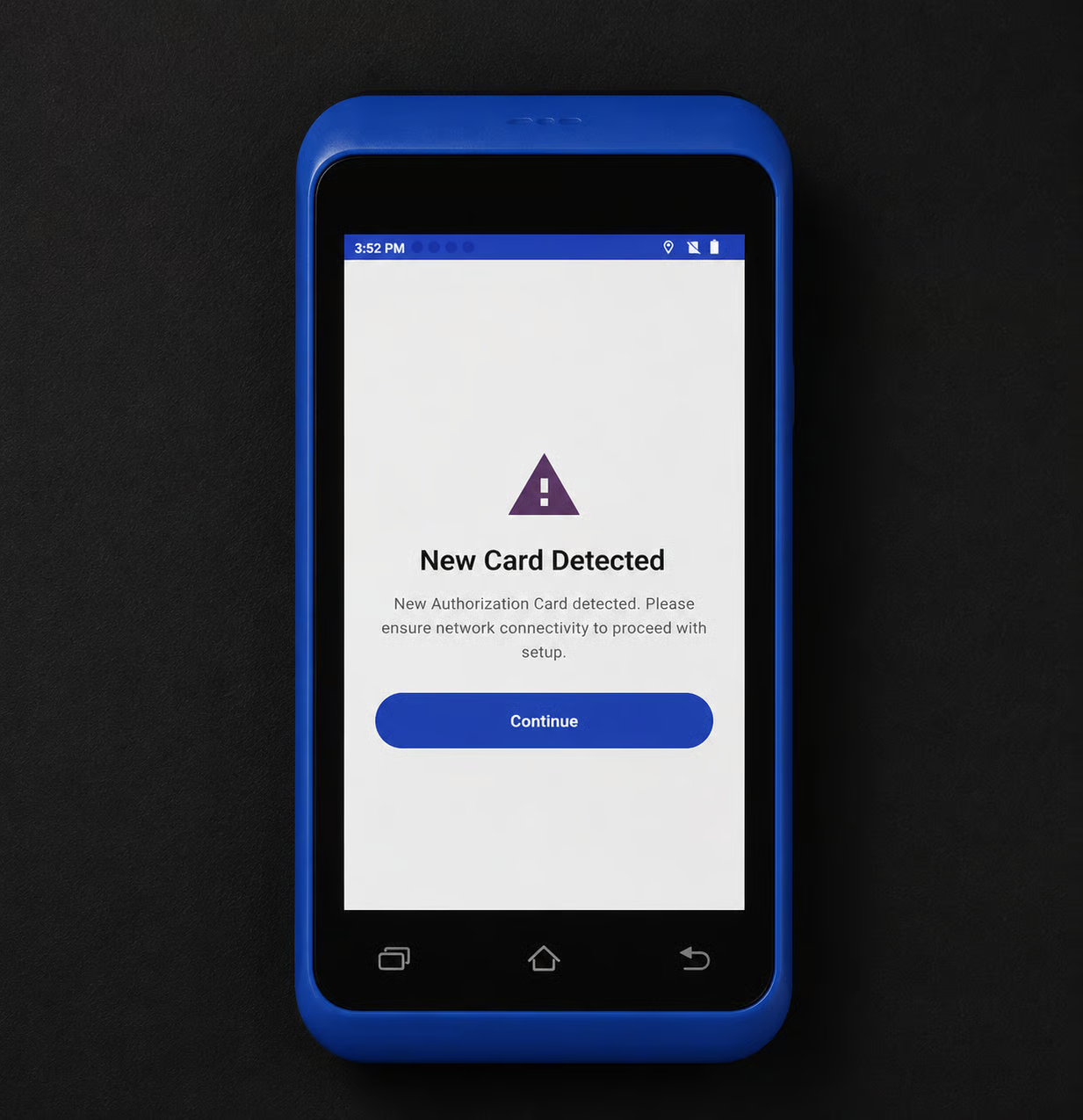

• Tap Continue

• Connect to Wi-Fi (if no SIM card is inserted)

Option A — No Installer

Video Guide: Merchant Self-Activation

If you are setting up the POS for your own business:

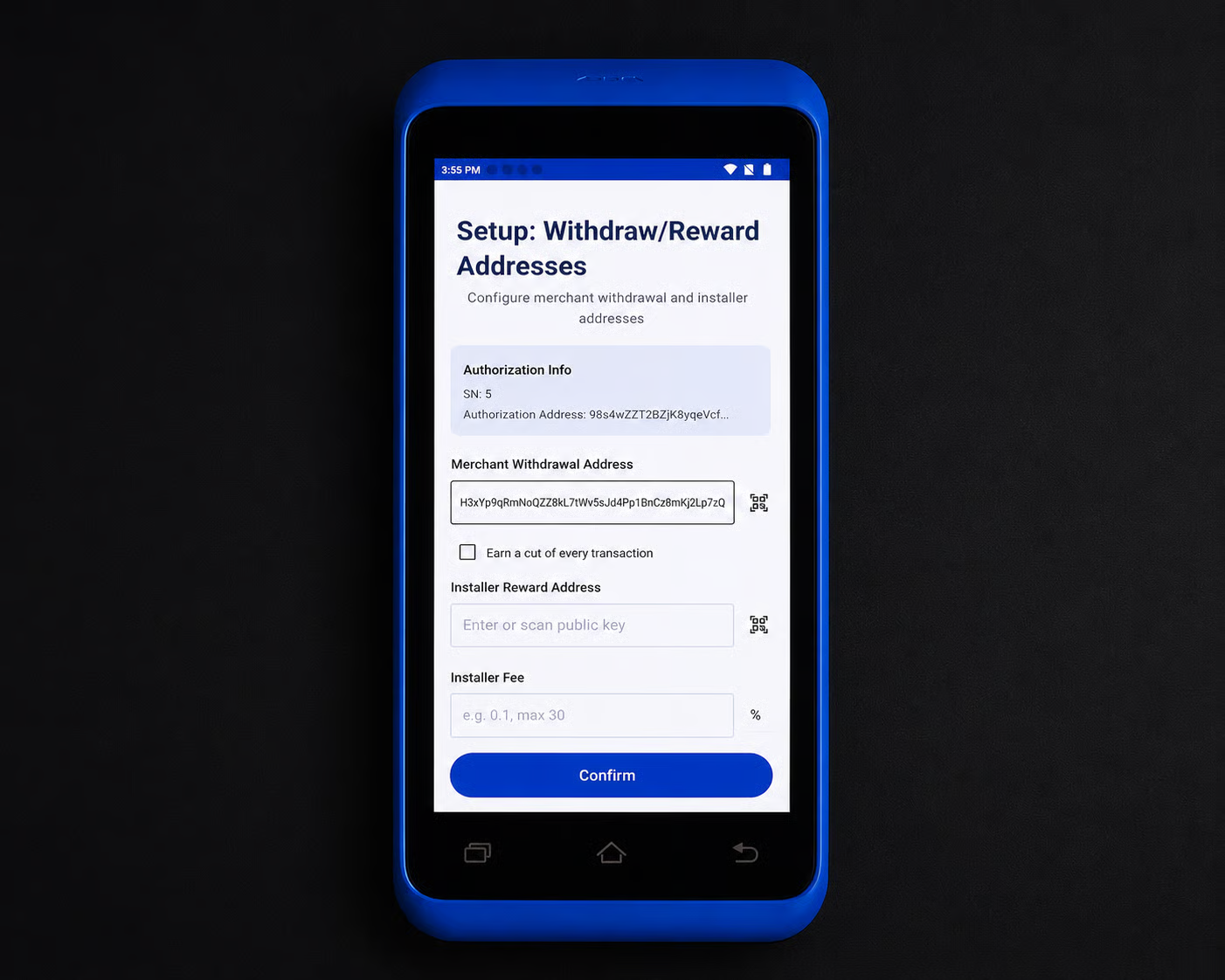

• Scan or manually enter the Merchant Withdrawal Address (where the merchant's USDC will be sent).
• Leave Earn a cut of every transaction unchecked.

• Tap Confirm to complete setup.





Option B — With Installer

Video Guide: Installer-Assisted Activation

If an Installer is setting up the POS for a merchant:

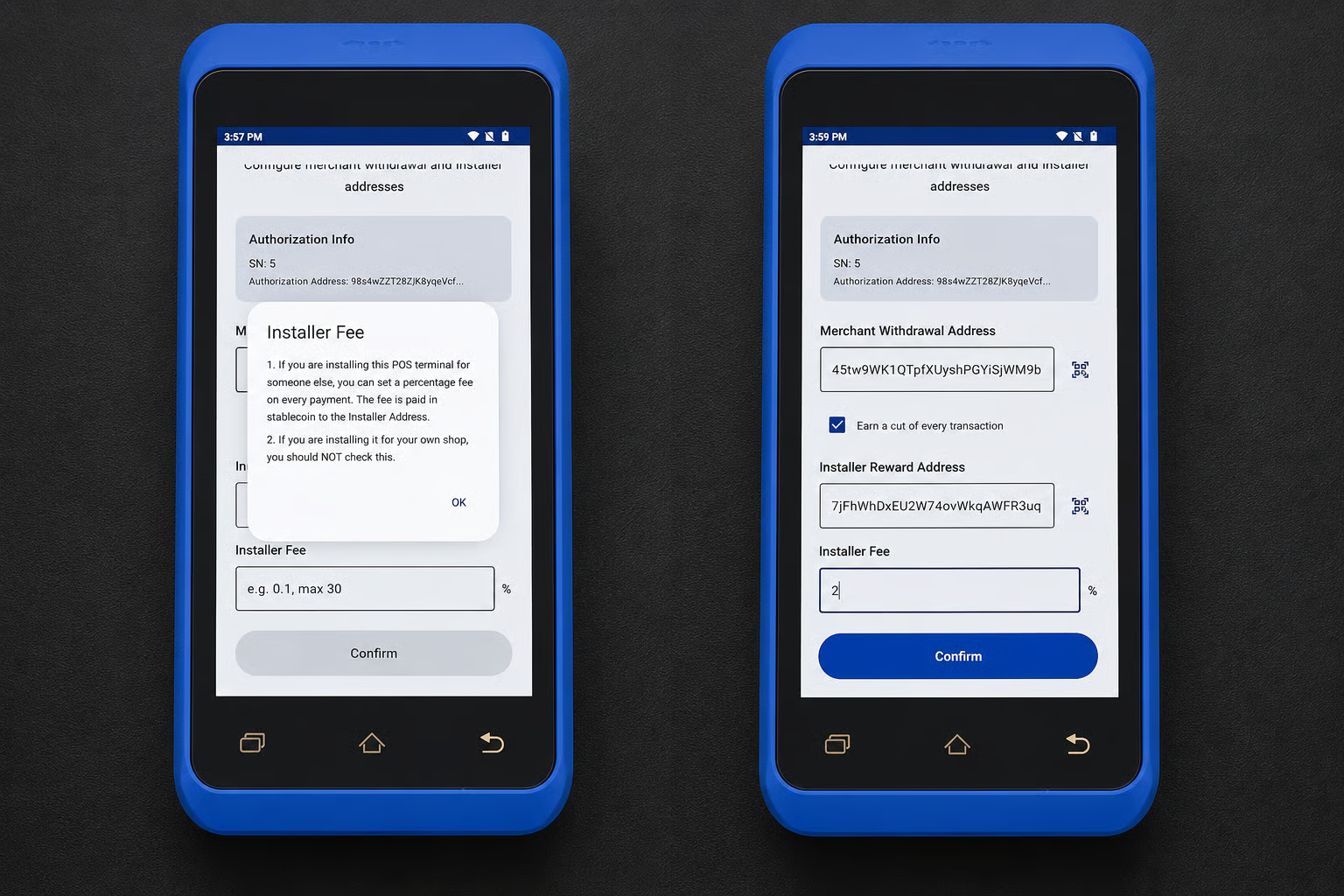

• Check Earn a cut of every transaction.
• Scan or manually enter the Installer Reward Address (where the installer's service fees will be sent).
• Enter the Installer Fee (percentage charged on each transaction).
• Tap Confirm to complete setup.

• Important: Double-check both addresses before confirming. Once set, these addresses cannot be changed. Any error will result in funds being sent to the wrong wallet.





Step 3 — Activate Payment Cards

Video Guide: Activate a PAYDAO Payment Card

Activate the PAYDAO Payment Cards

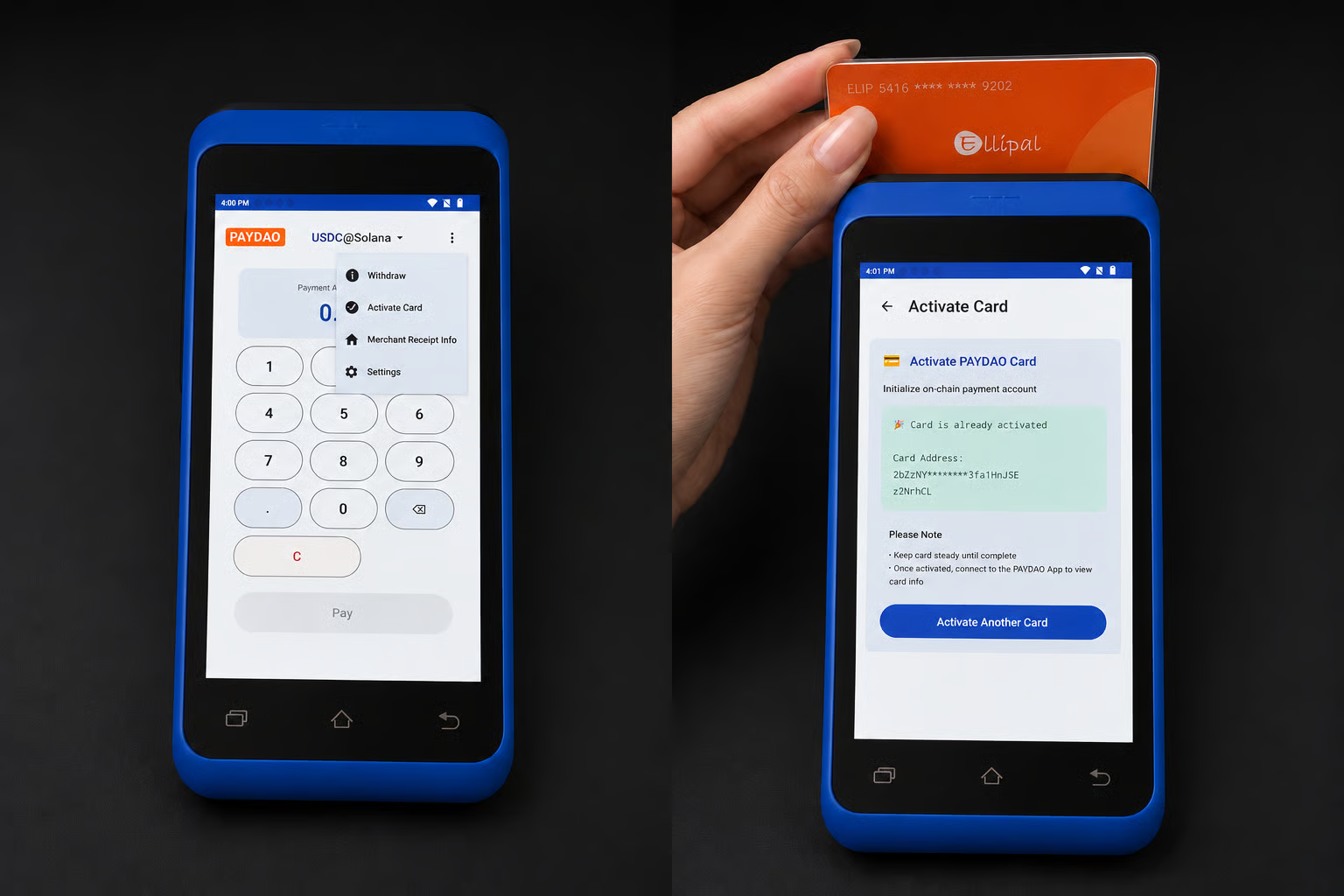

• On the PAYDAO POS application interface, tap ⋮ (menu) → Activate Card
• Hold the Payment Card to the NFC area on the terminal for a few seconds
• Wait for the confirmation message: "Card initialization successful"
• Tap Activate Another Card to repeat for additional cards

• Important: Payment Cards must be activated on the POS Terminal before they can be used for payments. Unactivated cards will not work.





MERCHANT + USER — PAYMENT FLOW

Step 4 — Make a Payment

Video Guide: Tap Card or Scan QR to Pay

Accept a Payment at the POS Terminal

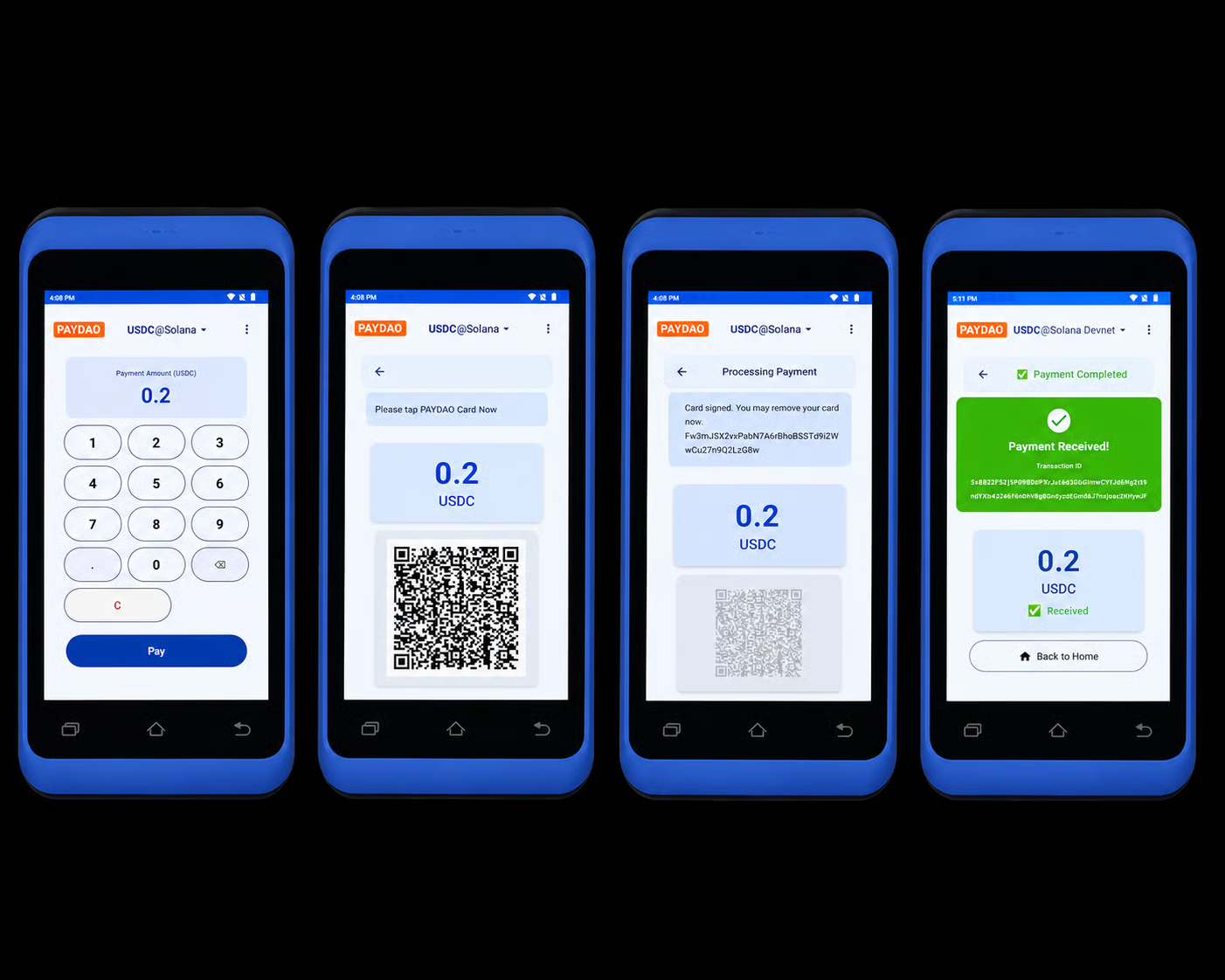

• On the PAYDAO POS interface, enter the payment amount and tap Pay.
• The customer can then choose either:
  • Tap to Pay: Hold a funded PAYDAO Payment Card near the POS NFC area until the confirmation beep.
  • Scan to Pay: Scan the QR code with a wallet that supports Solana Pay, then confirm the USDC payment in the wallet.
• Wait for the Payment Successful confirmation and receipt.

Note: If the network is congested, confirmation may take longer than usual. Please wait and avoid cancelling or repeating the transaction.

MERCHANT — SETTLEMENT

Step 5 — Merchant Withdrawal

Video Guide: Merchant Withdrawal

Withdraw Funds to Your Wallet

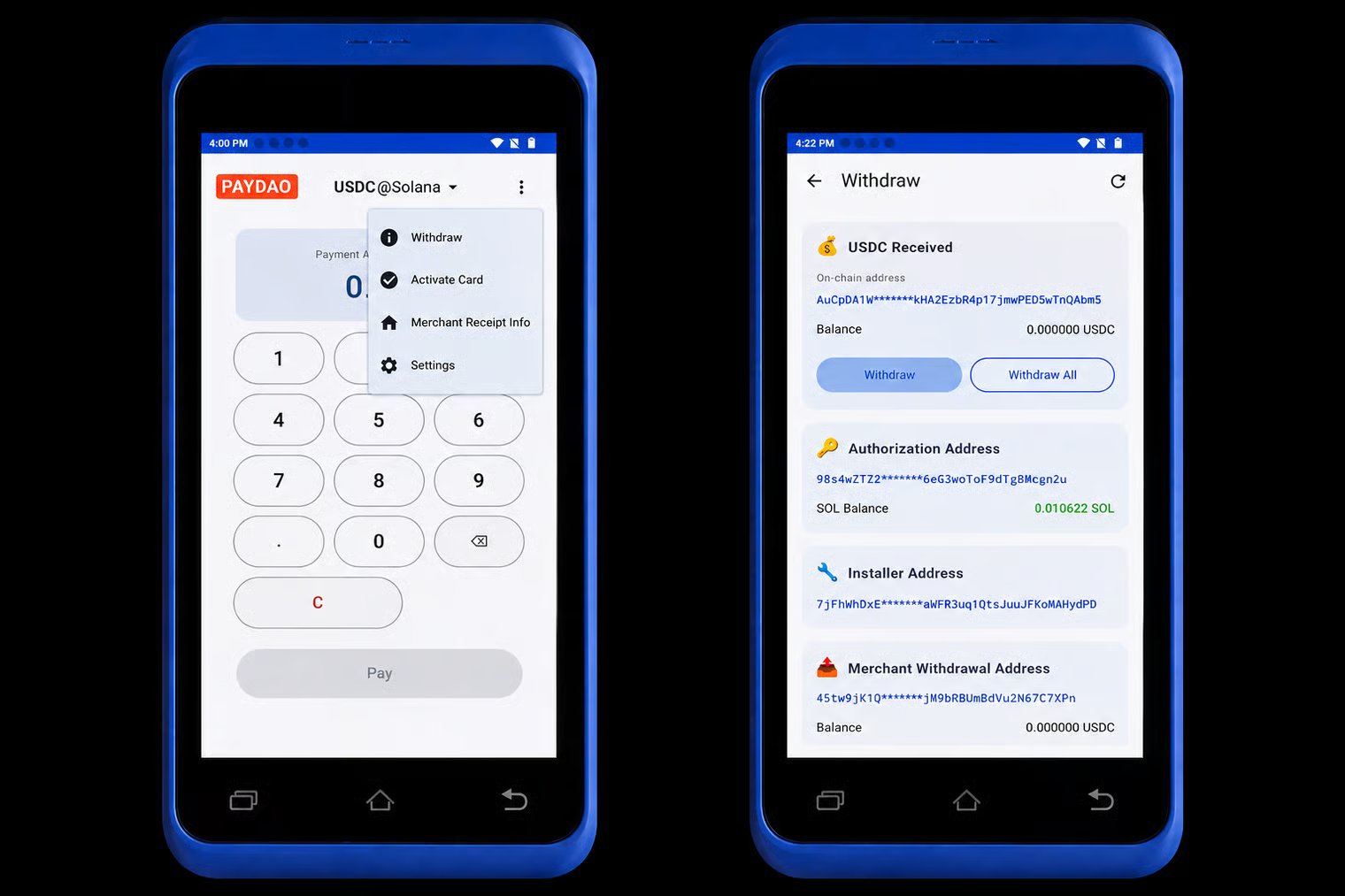

• On the PAYDAO POS interface, tap ⋮ (menu) → Withdraw
• Enter a specific amount, or choose to withdraw all available funds

• Funds are sent directly to your preset Merchant Withdrawal Address
